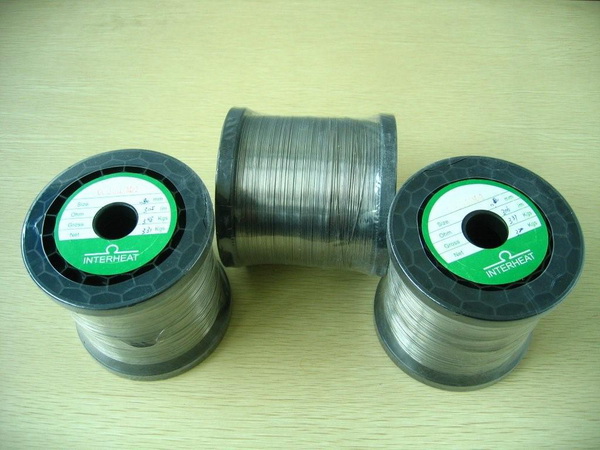

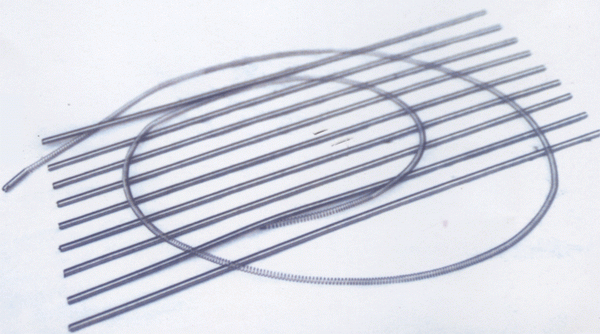

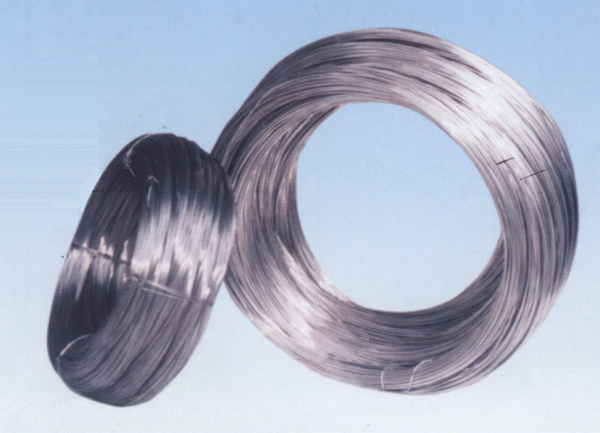

Table1 Resistance wire

1Cr13Al4 0Cr21Al4 0Cr21Al6 0Cr25Al5
主要化学成份 Main Chemical Composition Cr 12~15 17~21 20~23 23.0~26.0
Al 4.0~6.0 2~4 5.5~6.5 4.5~6.5
Fe 余量 Rest 余量 Rest 余量 Rest 余量 Rest
元件最高使用( ℃) Max.Continuous Service temp of elememt 1150 1200 1250 1000
熔点(℃ ) Melting point 1390 1400 1380 1390
电阻率( 20 ℃)
(Ω mm2/m )
Resistivity at 20 ℃
1.11~1.15 ± 0.05 1.09~1.14 ± 0.05 1.18~1.20 ± 0.05 1.04 ± 0.05
密度 Density(g/cm3) 8.2 8.4 7.1 7.1
电阻温度系数 Temp.coeffof Resistance(10-5/
℃)
15 5 5 5
线膨胀系数 (20~1000℃ ) Coefficient of linear Expansion ( 2 x 10-6 / ℃) 15.4 15.5 16 16
比热 (KJ/kg.k) specific heat 0.49   0.67 0.49
道热系数 (w/m.k) coefficient of thermal conductivity 14.65   17.56 12.79
延伸率 % Elongation at rupture > 16 > 14 > 12 > 12
反复弯曲次数
Repeat bending frequency
> 5 > 5 > 5 > 5
断面收缩率 % Variation of area 65~75 65~75 65~75 65~75
抗张强度 MPa Tensile strength 588~686 637~784 637~784 637~784
硬度 Hardness(H.B) 200~260 200~260 200~260 200~260
磁性能 Magnetic Properties 磁性
magnetic
磁性
magnetic
磁性
magnetic
磁性
magnetic
显微组织
Micrographic structure
铁素体
Ferrite
铁素体
Ferrite
铁素体
Ferrite
铁素体
Ferrite

Cr15Ni60

Cr20Ni80

Cr30Ni70

Cr20Ni30

主要化学成份

Main

Chemical

Composition

Si

0.75~1.60

0.75~1.60

0.75~1.60

0.75~1.60

Cr

15.0~18.0

20.0~20.3

28.0~31.0

18.0~24.0

Ni

55.0~61.0

余量

Rest

余量

Rest

30.0~36.0

Fe

余量

Rest

余量

Rest

元件最高使用(℃)

Max.Continuous Service

temp of elememt

1150

1200

1250

1000

熔点(℃)

Melting point

1390

1400

1380

1390

电阻率( 20℃ )

( Ω mm2/m )

Resistivity at 20℃

1.11~1.15 ± 0.05

1.09~1.14 ± 0.05

1.18~1.20 ± 0.05

1.04 ± 0.05

密度

Density(g/cm3)

8.2

8.4

8.1

7.9

线膨胀系数 (20~1000 ℃)

Coefficient of linear

Expansion ( 2 x 10 ( -6 ) /℃ )

13.0

14.0

17.1

13.0

比热 (KJ/kg.k)

specific heat

0.46

0.44

0.46

0.49

道热系数 (w/m.k)

coefficient of thermal conductivity

12.65

16.75

12.56

15.12

延伸率 %

Elongation at rupture

≥ 20

≥ 20

≥ 20

≥ 20

磁性能

Magnetic Properties

无磁性

non-magnetic

无磁性

non-magnetic

无磁性

non-magnetic

无磁性

non-magnetic

显微组织

Micrographic

structure

奥氏体

austenitic

奥氏体

austenitic

奥氏体

austenitic

奥氏体

austenitic

品种
variety
电阻率resistivity
应用特性(参考)
suitable properties for use(reference)

牌号Art.mark
代号no.
最高使用温度
(℃)max continuous operating temperature
特点property
焊接性welding
加工性processing
注意事项attention

铜基
Copper

CuNi1
NC003
0.03
200
耐腐蚀性能较好good corrosion resistance
良好
good
良好
good




CuNi2
NC005
0.05
220
CuNi6
NC010
0.10
220
CuNi8
NC012
0.12
250
CuMn3
NC012
0.12
200
CuNi10
NC015
0.15
250
CuNi14
NC020
0.20
300
CuNi19
NC025
0.25
300
CuNi23
NC030
0.30
300
CuNi30
NC035
0.35
350
CuNi34
NC040
0.40
350
CuNi44
NC050
0.49
400

nickel
铬chromium

iron
0Cr18Ni9
NCF072
0.72
300
具有韧性及耐蚀性
good tenacity and corrosion resistance
一般

generally

良好

good


NiCr3020
NCF104
1.04
500
NiCr6015
NCF113
1.13
600

iron

chromium
铝aluminium
1Cr13Al4
FCA126
1.26
400
0Cr20Al5
FCA137
1.37
400
高强度
high
strength

difficult



稍难
a
little difficult
脆性

brittleness

0Cr25A15
FCA142
1.42
400
0Cr27A17Mo2
FCA150
1.50
400
