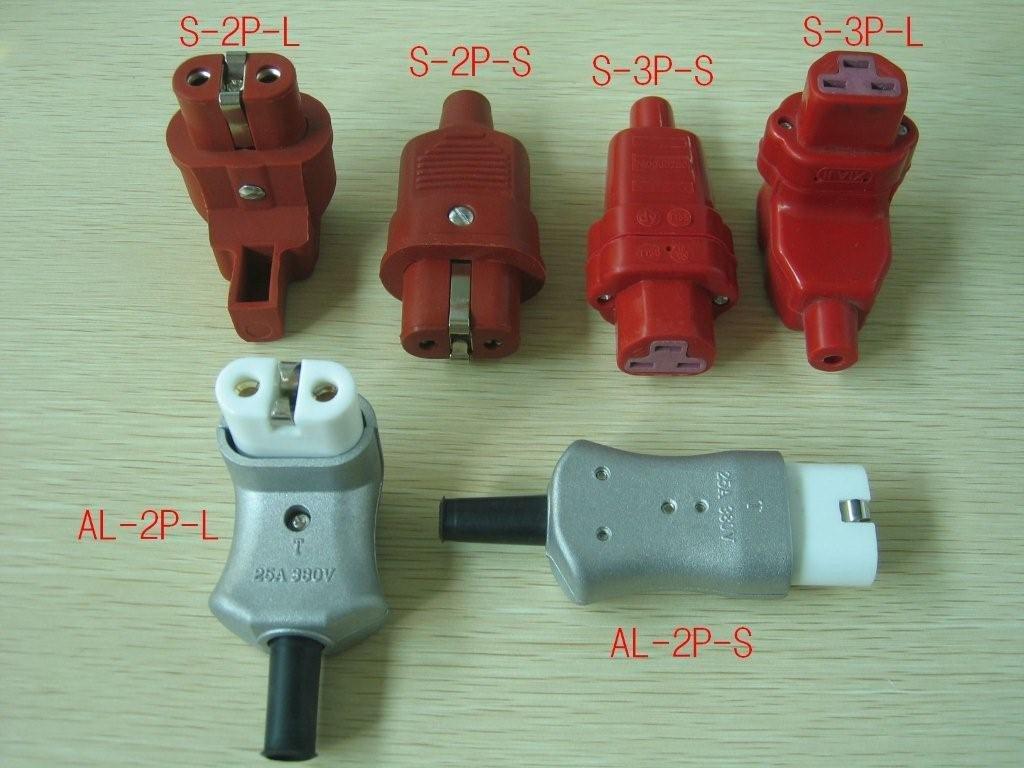

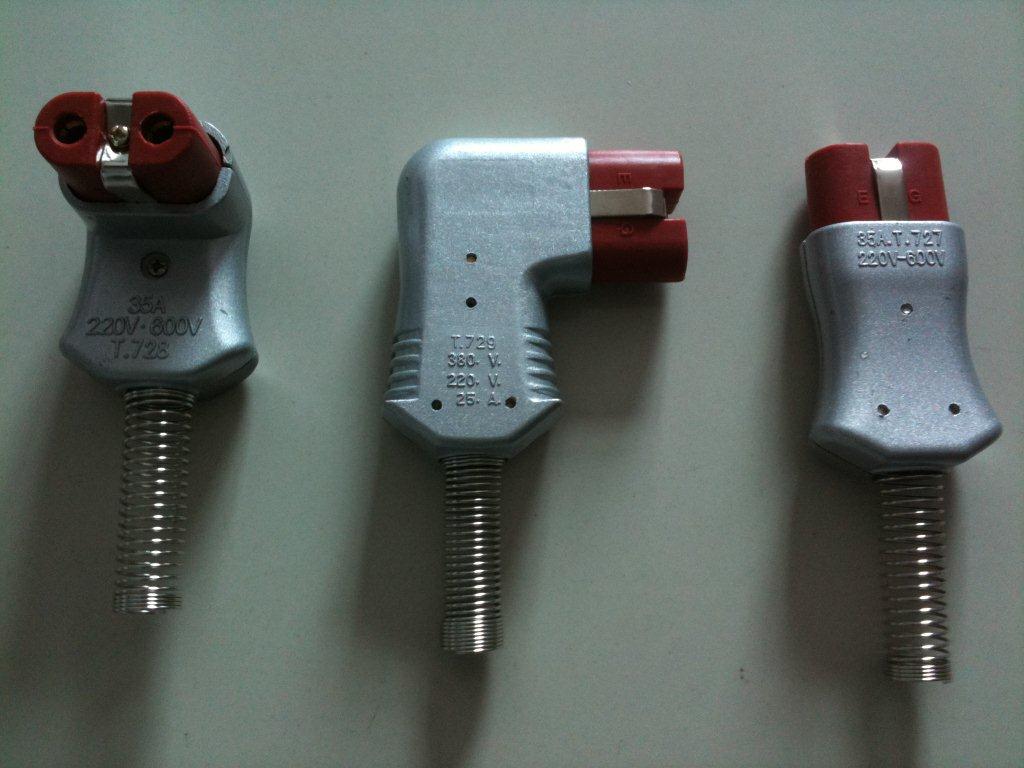

Table1 Band heater(plug)

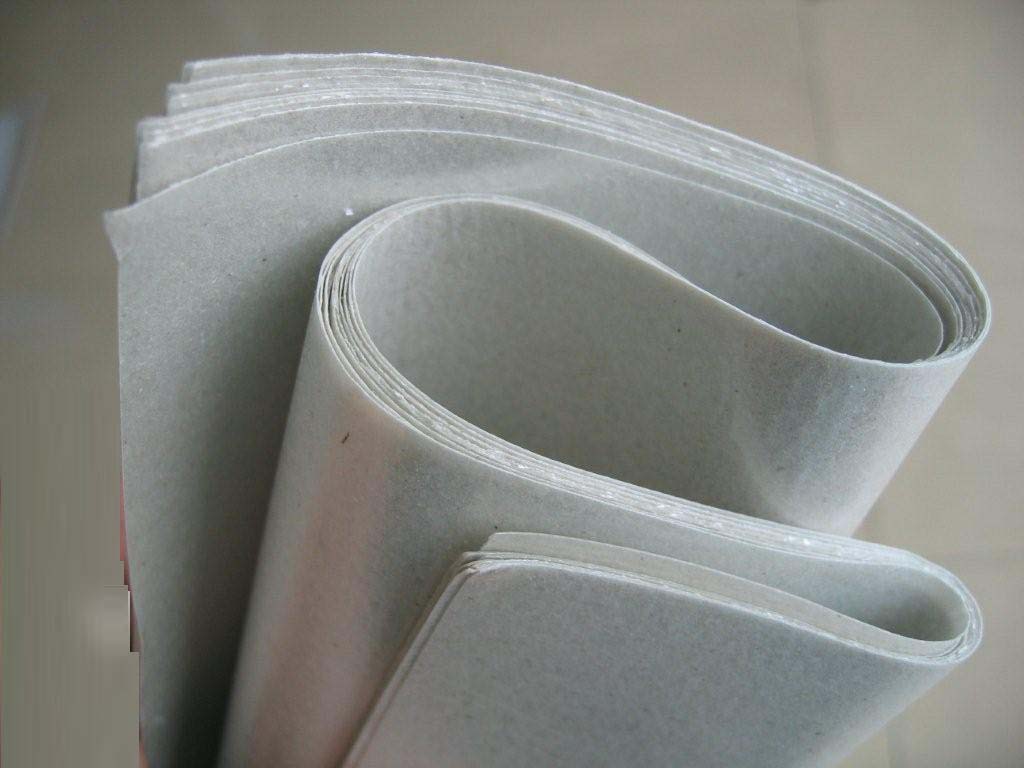

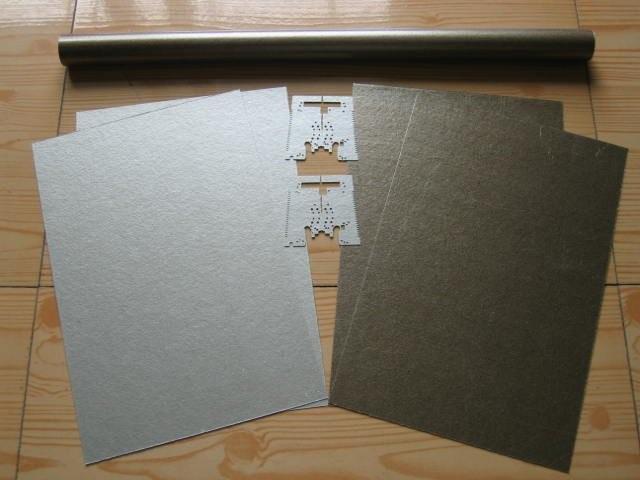

硬质/软质云母板 Rigid / Flexible mica plate
项目 Ltem 单位 Unit R-7788-H1 R-7788-H3 R-7788-S1 R-7788-S3
云母纸 Mica paper   白云母Muscovite 金云母Phlogopite 白云母Muscovite 金云母Phlogopite
云母含量 Mica content % ca.92 ca.92 ca.90 ca.90
胶含量 Bond content % ca.8 ca.8 ca.10 ca.10
密度 Density g/cm³ 1.6-2.45 1.6-2.45 1.6-2.0 1.6-2.0
耐温等级 Heat Resistant 持续使用环境 Continuous services 间歇工作环境 Intermittent services ℃ ℃ 500 800 700 1000 500 800 700 1000
500℃时热失重 Heat loss at 500℃ % <1 <1 <1 <1
700℃时热失重Heat loss at 700℃ % <2 <2 <2 <2
抗弯强度 Flexural strength Mpa >200 >200 <1 <1
吸水率 Water absorption % <1 <1 / /
电气强度 Dielectric strength KV/mm >20 >20 >20 >20
23℃时绝缘电阻 Insulation resistance 23℃ Ω .cm 10¹ 10¹ / /
500℃时绝缘电阻Insulation resistance 500℃ Ω .cm 10¹² 10¹² / /
耐火等级 Flame Resistance   94V0 94V0 94V0 94V0
发烟测试 Smoking test s <4 <4 / /
